Fire Sliding Doors. Smoke-tight, Standards complaint, Single & Double Leaf versions

Depending on the fire load, Hörmann provides reliable sliding door solutions in single and double-leaf versions that comply with requirements for operation and risk - for all areas. The fire protection designs are tested in accordance with DIN 4102, their quality is continuously monitored by MPA Braunschweig and they are approved by DIBt.

Smoke-tight fire sliding doors for safe escape and rescue routes are additionally tested in accordance with DIN 18095. They are well-suited for all areas with high personnel frequency, where, in the case of fire, people must be protected from the spread of life-threatening fumes.

For fast passage of pedestrians, hand trucks or smaller trolleys, fire sliding doors with wicket/escape door are suitable. For fire protection reasons, wicket/escape doors are equipped with slide rail overhead door closers.

Growing and constantly changing functional and safety requirements necessitate continuous new construction / equipment developments and improvements, especially when it comes to moveable construction components such as doors. In this area, our qualified development teams time and again prove their great specialised expertise.

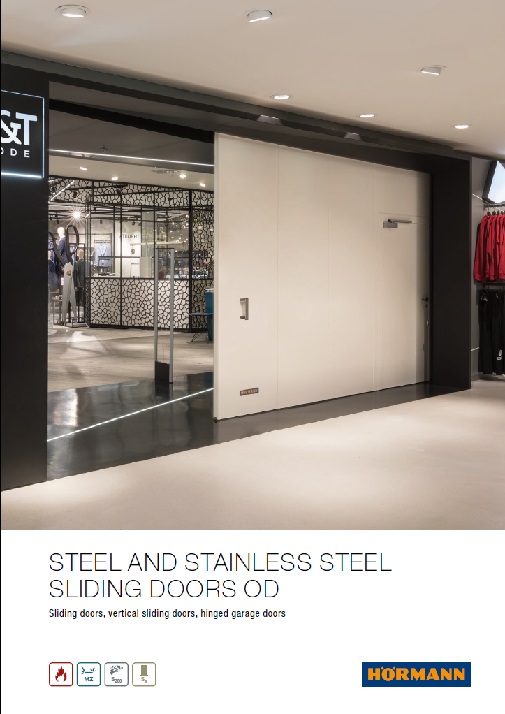

For more information, please see the adjacent catalogue.


Good reasons to try Hörmann fire sliding doors

High-quality overall appearance

High-quality overall appearance with the patented groove/spring element connection

Hörmann sliding doors offer a modern appearance through a patented V groove at the element joint without visible screw connections. The high stability is ensured through the interlocked, toothed labyrinth plug-in profile. The elements are 72 mm wide, fully glued and flush, and aligned with each other through threaded rods. This creates a high-quality door leaf with parallel, uniform-width borders.

Precise door leaf guide

Precise door leaf guide with patented track

The cylindrical track roller and the stable track roller, in conjunction with the patented track, work together to provide an optimal force balance. Quiet operation and easy actuation is ensured, thanks to a suspension with ball-bearing.

Exclusive Pearlgrain surface finish

Resistant Pearlgrain version

For special requirements a sliding door, including wicket door, can be produced with the Pearlgrain surface. This surface is resistant to mechanical damage during operation and fitting. The galvanized version is especially suited for use in warehouses and areas with frequent traffic. The track panel, weight box and profile all have smooth design. The Pearlgrain surface is optionally available in a RAL colour of your choice.

Wicket door without threshold rail

Wicket doors without threshold rails provide more convenience and safety

Hörmann is the only manufacturer with licensed trip-free wicket doors for smoke-tight sliding doors. Opening the wicket door in both directions is possible, depending on the rescue route planning. It can be variably fitted to either open into the reveal or away from it. Furthermore, two wicket doors per door leaf are possible, opening in opposite directions, as well as glazing in the door set.
