Mobile vehicle barriers for greater security
From the city festival in spring to the festival in summer and the Christmas market at the end of the year: With the certified mobile vehicle barriers from Hörmann, you can reliably secure open-air events. The cost-effective mobile barriers are easy to erect and dismantle and protect people and buildings from potential crossings. Hörmann offers two variants that are perfectly suited to any location and can also be combined.
The OktaBlock is ideal for cordoning off small and large areas, the mobile Road Blocker is used at vehicle passage points. Both can be set up without specialised technical knowledge and are ideal as temporary protection.
As a family business, we are very conscious of our responsibility to future generations and offer all products for construction projects as CO₂-neutral versions upon customer request. In this way, customers have the option to offset remaining emissions and make a contribution to climate protection when purchasing our products. With its sustainability strategy, Hörmann is pursuing the goal of reduce and avoid emissions.
- Certified individual modules
- Flexible use
- Fully assembled
- Quick assembly and dismantling
- Simple logistics
- Unobtrusive design
- Purchase or rent possible
Request quote now
Mobile drive-through barrier: OktaBlock
Protection against vehicle impacts from any direction
The OktaBlock mobile vehicle barrier secures access roads to event sites. One of the most important features is the octagonal base plate with a serrated edge. In the event of a vehicle impact, the bollard tilts forward and the base plate with its prongs wedges between the vehicle and the road. As a result of the braking effect, the vehicle comes to a standstill after a few metres and is unroadworthy.
Due to its axisymmetric geometry, the Hörmann OktaBlock has no predefined impact side and can thus prevent a vehicle collision from any direction.
The Hörmann OktaBlock is internationally patented.
Mobile drive-through barrier: Road Blocker M30
For flexible and certified safeguarding of events
The Road Blocker M30 is the ideal solution for safe and flexible access control. The mobile road blocker comes in a practical modular system and enables flexible combination of individual modules depending on requirements. This makes it simple to combine modules with retractable alarm contact element with modules for pedestrian passage. With a barrier height of approx. 800 mm the mobile Road Blocker M30 secures passages and provides maximum safety while offering a high degree of flexibility in areas requiring special protection. Certifications in accordance with the latest standard for mobile access protection DIN SPEC 91414-1 and IWA 14 are available.
- Mobile vehicle barrier Road Blocker M30 in a practical modular system
- Freely combinable: modules with retractable barrier element and modules for pedestrian passageways
- Locking height: approx. 800 mm
- Maximum security and flexibility
- Certification according to DIN SPEC 91414-1 and IWA 14
- Can be combined with OktaBlock mobile vehicle barrier
OktaBlock and mobile Road Blocker in comparison
The right model for every application
| How does the OktaBlock work? | How does the mobile Road Blocker M30 work? | |
|---|---|---|
| Only at Hörmann: | Protection against vehicle impacts from any direction due to the axisymmetric design | Mobile Road Blocker M30 certified according to DIN SPEC 91414 |
| Product features: |
|
|
| Certification: |
|
|
Certified access protection
Effective against vehicles breaking through
The effect of the OktaBlock has been proven in several crash tests.
The mobile vehicle barrier meets the crash test standards of the international safety standards BSI PAS68:2013 and IWA-14-1:2013. In the prescribed test, an unmanned truck with a test weight of 7.5 tonnes and a speed of 50 km/h drives against a single OktaBlock module. The resulting impact energy is around 750,000 joules.
The OktaBlock TR is designed and certified in accordance with the even stricter requirements of the German police's technical guidelines for mobile vehicle barriers. In the test carried out on a wet road, the barrier must absorb an impact from two different angles of 90 and 45 degrees, with a maximum impact energy of up to 986000 joules in protection category SK1B.
In a constellation of three OktaBlock TR and two DIN SPEC loops, the OktaBlock was also certified in accordance with DIN SPEC 91414-1 and achieved the best results in the impact and displacement test.
In contrast to other mobile solutions, all certificates are valid even when individual modules are used, so it is not necessary to connect several modules. This ensures maximum flexibility and unobstructed escape routes without visual blockages.
The Road Blocker M30: certified mobile access protection to the latest standard
The Road Blocker M30 fulfils the requirements of IWA 14 and DIN SPEC 91414-1, the latest and most stringent standard for mobile vehicle barriers. In addition to an impact test, it also includes a displacement test and a manipulation test. A 7.5-tonne truck travelling at 50 km/h therefore also collided with the Road Blocker M30 in the crash test - and was successfully slowed down. The additional displacement test achieved an excellent value of just 0.1 metres, and the result of the tampering test was tamper resistance class 2 (MK2).
OktaBlock
- Dimensions of the base plate 800 x 800 mm
- Height of the bollard 1250 mm
- Diameter of the bollard 273 mm
- Colour Anthracite grey RAL 7016 (optional RAL colour of your choice for an extra charge)
- Weight Approx. 350 kg
- Impact energy 750000 J
- certified according to M30, K4, PAS68, IWA 14-1
OktaBlock TR
- Dimensions of the base plate 800 x 800 mm
- Height of the bollard 1250 mm
- Diameter of the bollard 273 mm
- Colour Anthracite grey RAL 7016 (optionally in RAL of your choice for an additional charge)
- Weight Approx. 450 kg
- Impact energy 986000 J
- certified according to SK1B, TR Pol (according to the technical guidelines of the German police for mobile vehicle barriers, version 0.8)
- and according to DIN SPEC 91414-1

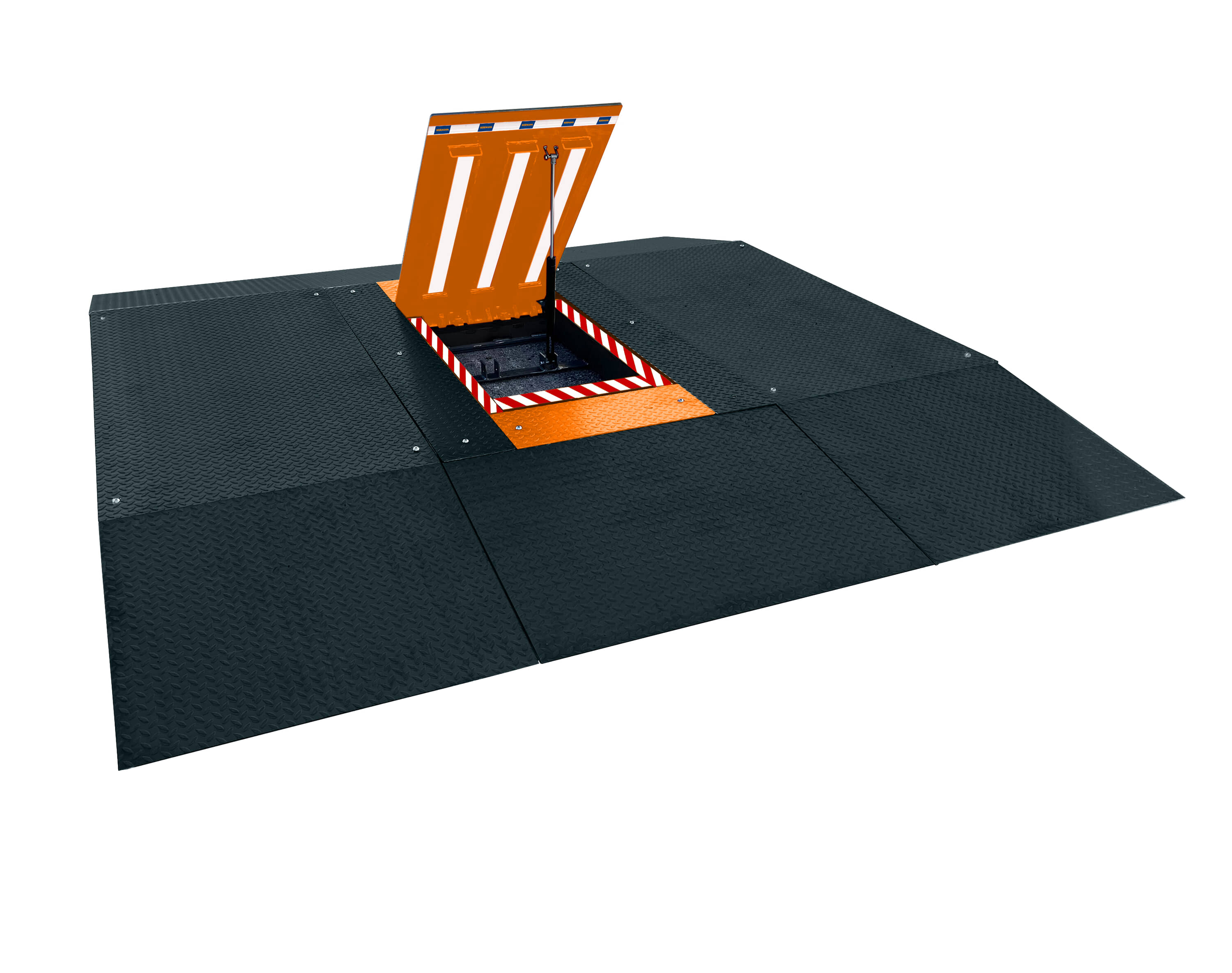

Road Blocker M30
- Mobile vehicle barrier Road Blocker M30 in a practical modular system
- Freely combinable: Modules with retractable blocking element and modules for pedestrian passage
- Locking height: approx. 800 mm
- Maximum security and flexibility
- Certification according to DIN SPEC 91414-1 and IWA 14
- Can be combined with OktaBlock mobile vehicle barrier
-
Variant 1: one module with a lowerable blocking element combined with two modules allowing pedestrian passage … -
… and Variant 2: two modules with a lowerable blocking element combined with a central module allowing pedestrian passage.
Customised to your event
Simple, flexible, efficient, location-independent
Maximum flexibility
The Hörmann OktaBlock can be arranged individually, in rows or staggered to secure small and large areas quickly and economically. It enables an optimum passage width of 1.20 metres, which protects people from driving through and at the same time allows people travelling by bike, wheelchair or on foot to pass comfortably. It blends unobtrusively into the overall concept of events and is not perceived as threatening. The mobile Road Blocker M30 is ideal for use at vehicle passage points. It functions on a modular basis: Elements with lowerable barrier elements can be easily combined with elements for pedestrian passage. Caring alone or together OktaBlock and mobile Road Blocker M30 ensure maximum safety in particularly vulnerable areas. Hörmann thus offers an efficient, flexible complete solution from a single source. An access protection concept must be drawn up by an expert to ensure that the mobile vehicle barriers are set up in accordance with requirements and standards.
Accessories and extras

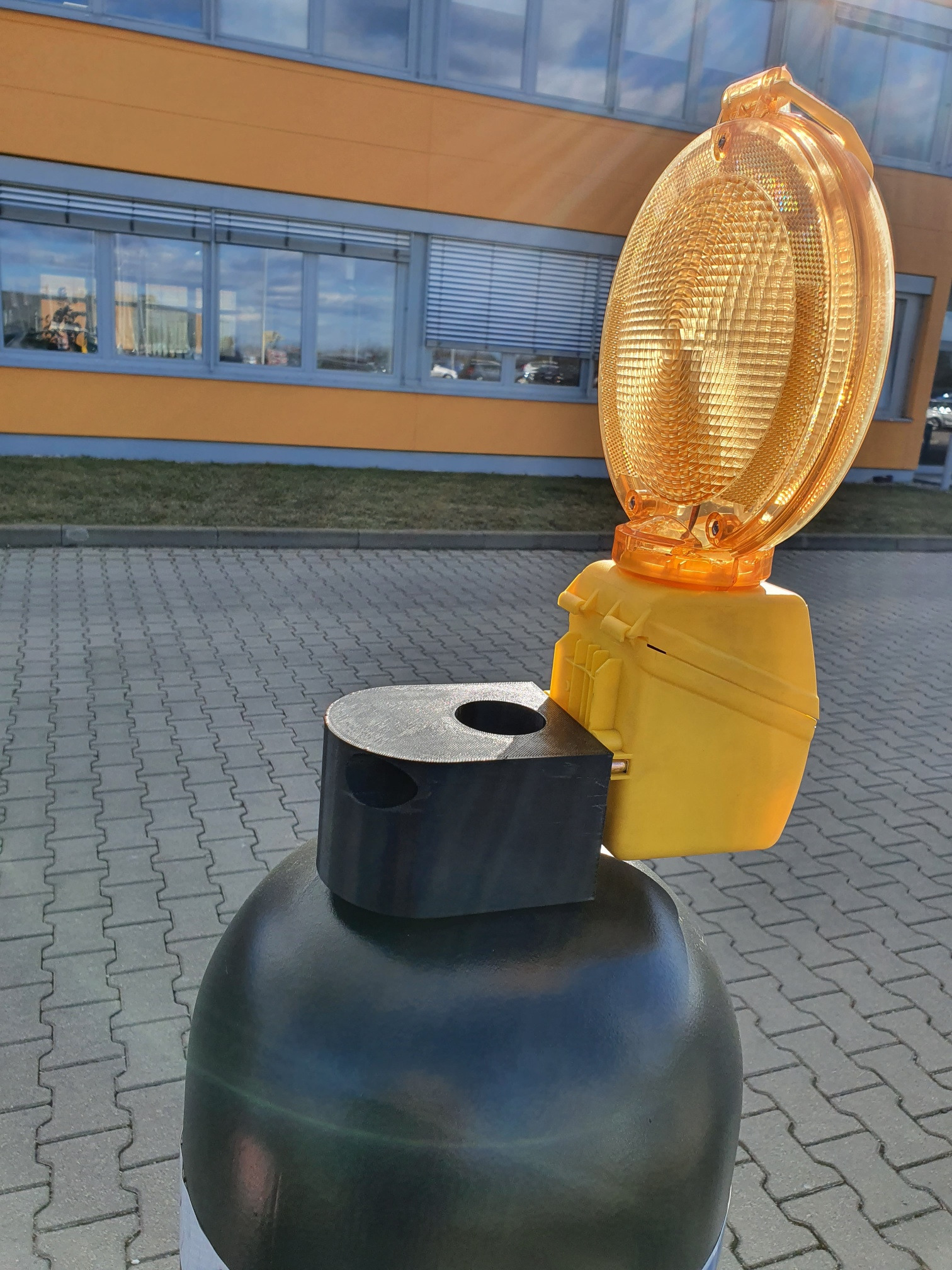

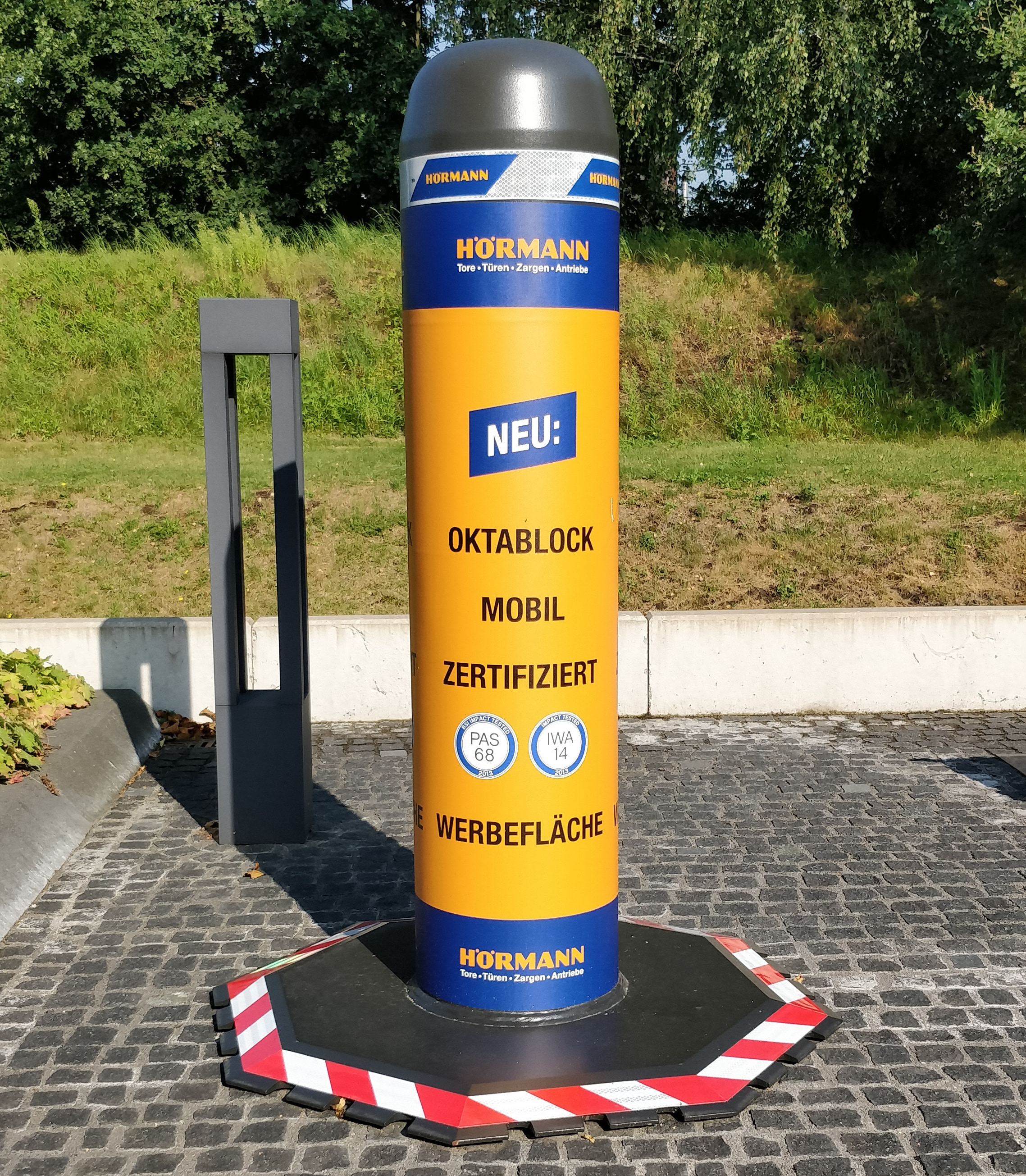

Special plus point for the OktaBlock: The area of the vehicle barriers can be used for advertising or signage purposes using a round banner. What's more, a universal adapter can be used to attach the familiar and widely used construction site lights from road traffic to the head of the OktaBlock. This means that the bollard is also clearly visible at night. Both the universal adapter and the construction site light are available from Hörmann.
Simple logistics

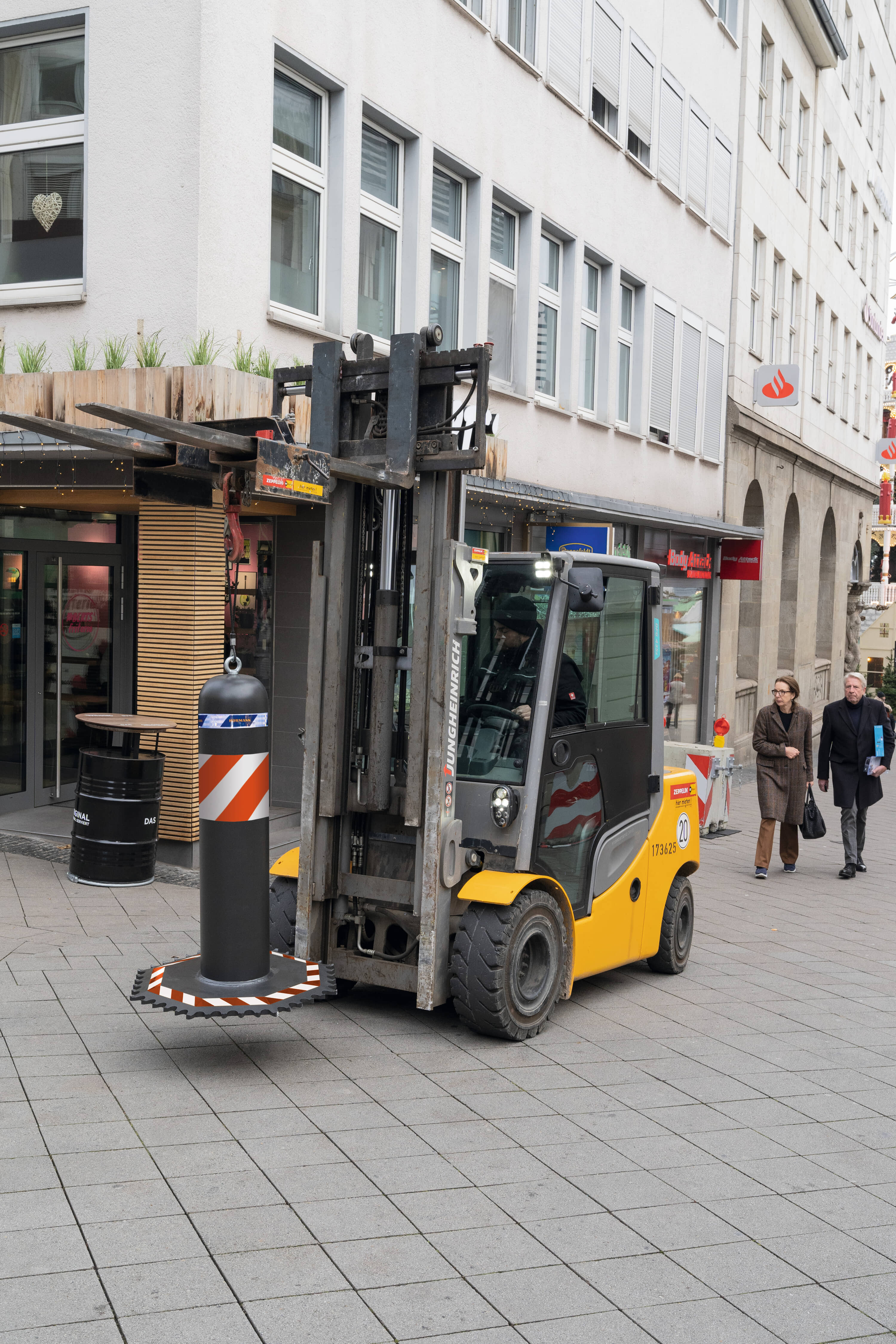

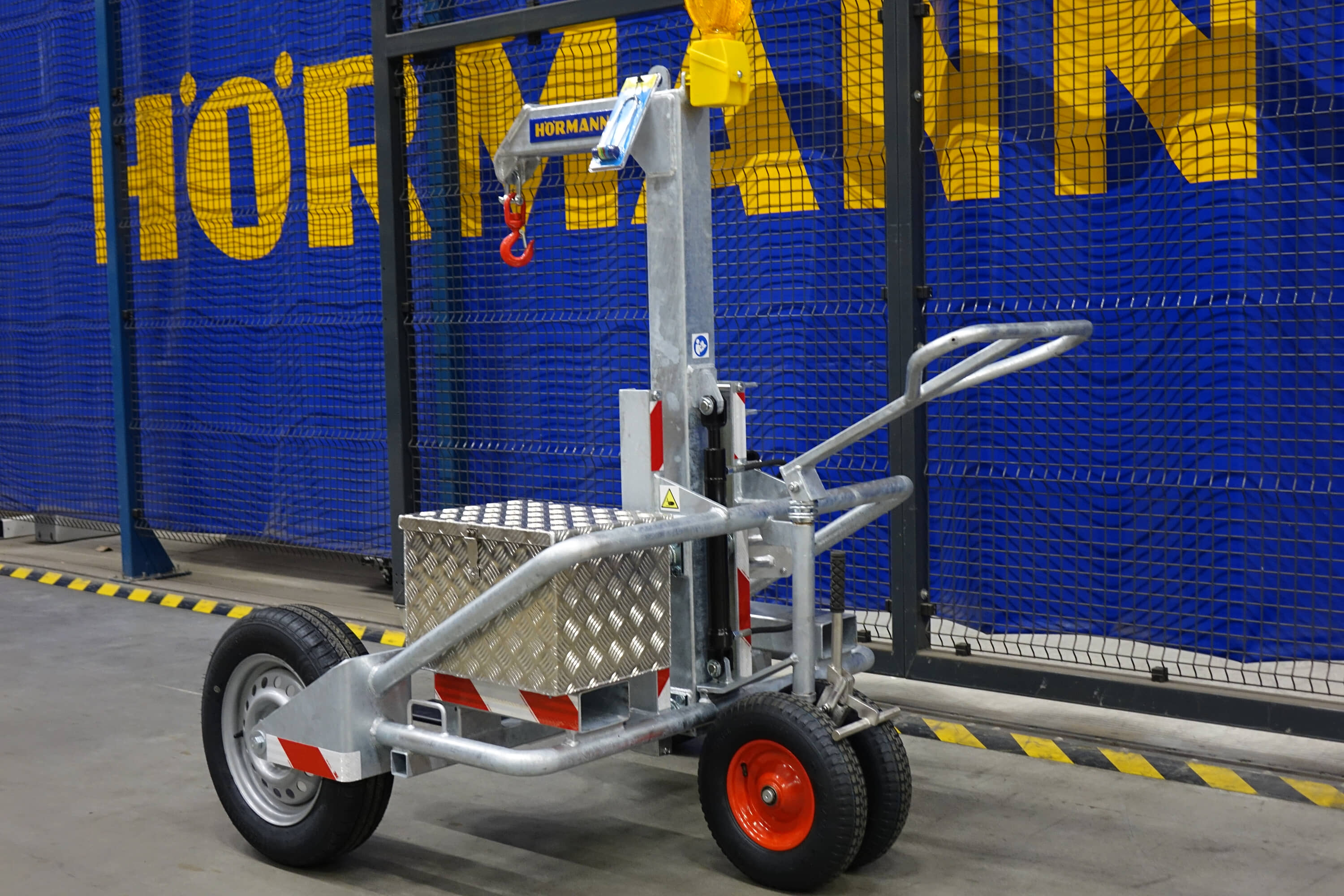

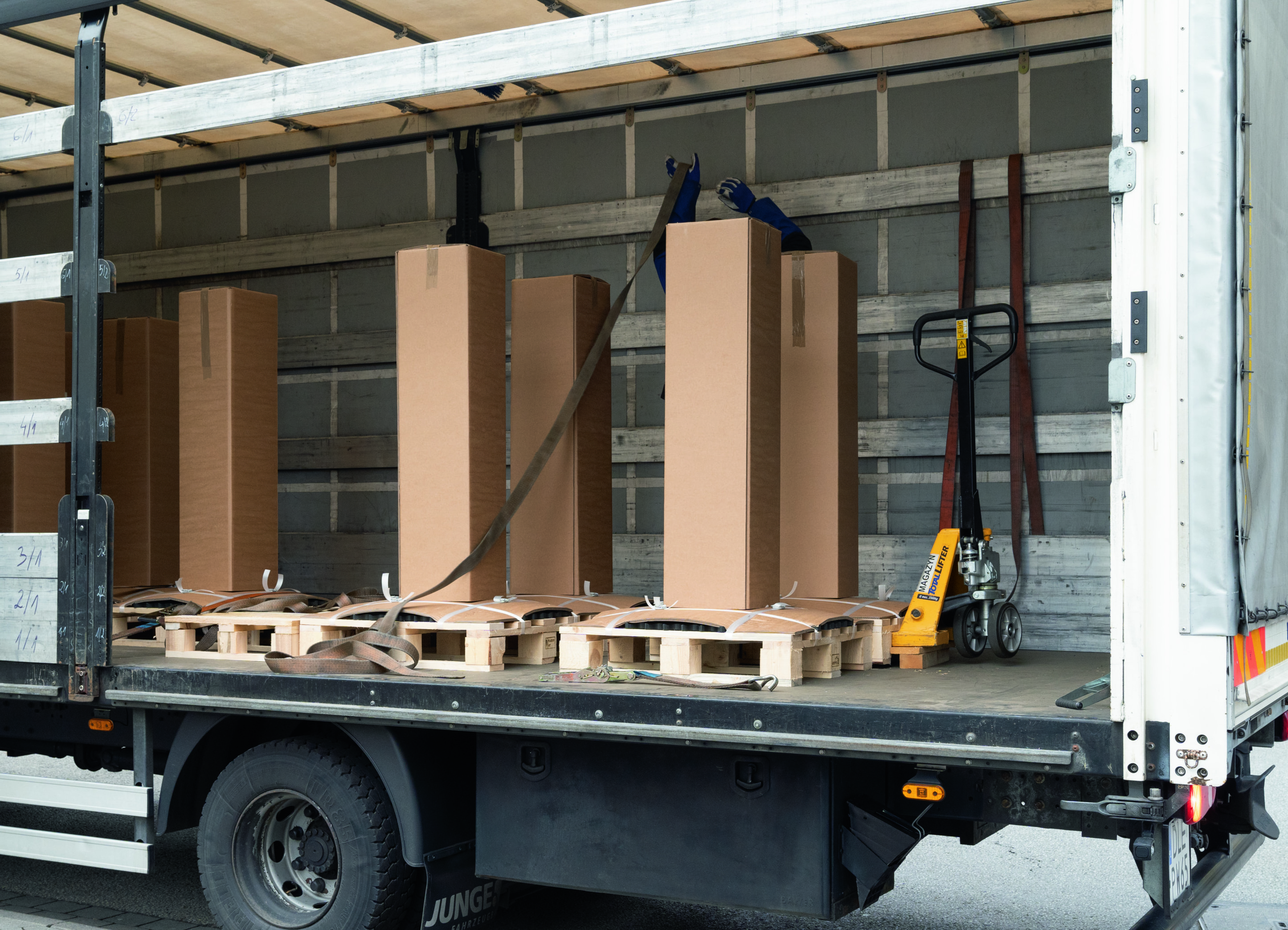

The OktaBlock can be easily positioned using a crane or forklift truck thanks to a ring eyelet that can be screwed into the bollard head and can be set up and put down without any specialised technical knowledge. Hörmann also offers the OktaMover hydraulic transport aid (pictured left). This enables quick and easy placement even without motorised special vehicles that require a special driving licence - for example, to quickly create a passage for emergency vehicles. The mobile vehicle barrier cannot be moved or manipulated without a crane, forklift or the OktaMover. Security is not required before or during the event. The individual elements can be stored outdoors and transported on standard lorries in a space-saving manner.
