Juno tool sheds
Modern, durable, individual
With our storage systems you can keep your garden garden tools, tools, bicycles and much more practically and well protected. This gives you more space in your home for the really nice things. Our sheds are a reliable companion throughout your life and protect what is important to you.
The Juno tool sheds offer high-quality storage space for the garden or patio and allow for customised customised design: Choose from two designs, three roof shapes, three colours and up to 14 different sizes. You also have the option of designing the roof and door elements in a different colour to the rest of the shed.
With the right accessories for inside and outside, you can customise your shed perfectly to your needs. The timeless design and the durable materials of our Hörmann sheds harmonise with any style.
As a family business, we are aware of our responsibility for future generations and offer all products for residential construction CO2-neutral as standard. The Hörmann sustainability strategy aims to reduce and avoid emissions.
Your advantages at a glance
Juno sheds from Hörmann
✓ Robust design consisting of single-skinned, galvanized, high-quality painted sheet steel
✓ Weather-resistant, rainwater-proof and UV-resistant thanks to high-quality coil coating on both sides
✓ Particularly low-maintenance and easy to clean
✓ A wide range of design possibilities: three roof shapes (flat, pent and gable roof) and two styles (Modern and Design)
✓ A large selection of sizes: 11 sizes for flat roofs and pent roofs, 14 sizes for gable roofs
✓ Three modern exterior colours: RAL 7016 anthracite grey, CH 703 anthracite metallic and RAL 9007 grey aluminium
✓ Modern design with concealed hinges
✓ Mechanical hold-open device for controlled opening and closing
✓ Stainless steel lever handle set as standard
✓ Can be customised inside and out with optional accessories
✓ 20 Years warranty
✓ CO2-neutral as standard
There are many good reasons to choose Juno sheds from Hörmann.
Three modern exterior colours
The following colours are available 3 modern standard colours are available: anthracite grey, anthracite metallic and grey aluminium. There is also the option of having the roof roof and the door elements in a different colour colour than the rest of the shed. Inside, the Juno appliance housings are painted in grey-white.
Standard exterior colour
RAL 7016 Anthracite grey
Standard exterior colour
CH 703 Anthracite Metallic
Standard exterior colour
RAL 9007 Grey aluminium
Standard colours, interior
RAL 9002 Grey white
Sizes for Juno tool sheds
| External dimensions with flat roof (width × depth) | Overall height with flat roof (height) | Internal dimensions of tool shed (width × depth) | Clear passage height, tool shed (height) | Clear passage width (single-leaf / double-leaf) | Gross volume | |
|---|---|---|---|---|---|---|
| JFD 4 | 229 x 181 cm | 220 cm | 205 × 157 cm | 195 cm | 92 cm / 140 cm | 7,4 m³ |
| JFD 5 | 229 × 229 cm | 220 cm | 205 × 205 cm | 195 cm | 92 cm / 140 cm | 9,6 m³ |
| JFD 6 | 229 × 277 cm | 220 cm | 205 × 253 cm | 195 cm | 92 cm / 140 cm | 11,7 m³ |
| JFD 7 | 229 × 325 cm | 220 cm | 205 × 301 cm | 195 cm | 92 cm / 140 cm | 13,9 m³ |
| JFD 8 | 277 × 181 cm | 220 cm | 253 × 157 cm | 195 cm | 92 cm / 140 cm | 9,1 m³ |
| JFD 9 | 277 × 229 cm | 220 cm | 253 × 205 cm | 195 cm | 92 cm / 140 cm | 11,7 m³ |
| JFD 10 | 277 × 277 cm | 220 cm | 253 × 253 cm | 195 cm | 92 cm / 140 cm | 14,4 m³ |
| JFD 11 | 277 × 325 cm | 220 cm | 253 × 301 cm | 195 cm | 92 cm / 140 cm | 17,0 m³ |
| JFD 12 | 325 × 229 cm | 220 cm | 301 × 205 cm | 195 cm | 92 cm / 140 cm | 13,9 m³ |
| JFD 13 | 325 × 277 cm | 220 cm | 301 × 253 cm | 195 cm | 92 cm / 140 cm | 17,0 m³ |
| JFD 14 | 325 × 325 cm | 220 cm | 301 × 301 cm | 195 cm | 92 cm / 140 cm | 20,1 m³ |
| External dimensions with pent roof (width × depth) | Overall height with pent roof (height) | Internal dimensions of tool shed (width × depth) | Clear passage height, tool shed (height) | Clear passage width (single-leaf / double-leaf) | Gross volume | |
|---|---|---|---|---|---|---|
| JFD 4 | 214 x 166 cm | 220 cm | 205 × 157 cm | 195 cm | 92 cm / 140 cm | 7,5 m³ |
| JFD 5 | 214 × 214 cm | 220 cm | 205 × 205 cm | 195 cm | 92 cm / 140 cm | 9,1 m³ |
| JFD 6 | 214 × 262 cm | 220 cm | 205 × 253 cm | 195 cm | 92 cm / 140 cm | 9,6 m³ |
| JFD 7 | 214 × 310 cm | 220 cm | 205 × 301 cm | 195 cm | 92 cm / 140 cm | 11,8 m³ |
| JFD 8 | 262 × 166 cm | 220 cm | 253 × 157 cm | 195 cm | 92 cm / 140 cm | 14,0 m³ |
| JFD 9 | 262 × 214 cm | 220 cm | 253 × 205 cm | 195 cm | 92 cm / 140 cm | 12,0 m³ |
| JFD 10 | 262 × 262 cm | 220 cm | 253 × 253 cm | 195 cm | 92 cm / 140 cm | 14,7 m³ |
| JFD 11 | 262 × 310 cm | 220 cm | 253 × 301 cm | 195 cm | 92 cm / 140 cm | 17,4 m³ |
| JFD 12 | 310 × 214 cm | 220 cm | 301 × 205 cm | 195 cm | 92 cm / 140 cm | 14,2 m³ |
| JFD 13 | 310 × 262 cm | 220 cm | 301 × 253 cm | 195 cm | 92 cm / 140 cm | 17,4 m³ |
| JFD 14 | 310 × 310 cm | 220 cm | 301 × 301 cm | 195 cm | 92 cm / 140 cm | 20,6 m³ |
| External dimensions with gable roof (width × depth) | Overall height with gable roof (height) | Internal dimensions of tool shed (width × depth) | Clear passage height, tool shed (height) | Clear passage width (single-leaf / double-leaf) | Gross volume | |
|---|---|---|---|---|---|---|
| JSD 1 | 189 × 133 cm | 219 cm | 157 × 109 cm | 195 cm | 92 cm | 4,1 m³ |
| JSD 2 | 189 × 181 cm | 219 cm | 157 × 157 cm | 195 cm | 92 cm | 5,7 m³ |
| JSD 3 | 237 × 133 cm | 223 cm | 205 × 109 cm | 195 cm | 92 cm / 140 cm | 5,3 m³ |
| JSD 4 | 237 × 180 cm | 223 cm | 205 × 157 cm | 195 cm | 92 cm / 140 cm | 7,5 m³ |
| JSD 5 | 237 × 229 cm | 223 cm | 205 × 205 cm | 195 cm | 92 cm / 140 cm | 9,6 m³ |
| JSD 6 | 237 × 277 cm | 223 cm | 205 × 253 cm | 195 cm | 92 cm / 140 cm | 11,8 m³ |
| JSD 7 | 237 × 325 cm | 223 cm | 205 × 301 cm | 195 cm | 92 cm / 140 cm | 14,0 m³ |
| JSD 8 | 285 × 181 cm | 227 cm | 253 × 157 cm | 195 cm | 92 cm / 140 cm | 9,2 m³ |
| JSD 9 | 285 × 229 cm | 227 cm | 253 × 205 cm | 195 cm | 92 cm / 140 cm | 11,9 m³ |
| JSD 10 | 285 × 277 cm | 227 cm | 253 × 253 cm | 195 cm | 92 cm / 140 cm | 14,6 m³ |
| JSD 11 | 285 × 325 cm | 227 cm | 253 × 301 cm | 195 cm | 92 cm / 140 cm | 17,3 m³ |
| JSD 12 | 333 × 229 cm | 231 cm | 301 × 205 cm | 195 cm | 92 cm / 140 cm | 14,3 m³ |
| JSD 13 | 333 × 277 cm | 231 cm | 301 × 253 cm | 195 cm | 92 cm / 140 cm | 17,5 m³ |
| JSD 14 | 333 × 325 cm | 231 cm | 301 × 301 cm | 195 cm | 92 cm / 140 cm | 20,7 m³ |
Roof shapes and designs for Juno sheds
Juno shed design
The Juno shed in motif design convinces with its striking wide, vertically running louvreswhich give the house a modern and elegant aesthetics and elegant aesthetic. Thanks to the invisible screws, rivets and door hinges create a particularly sleek and harmonious overall look. It is available with a flat roof, a pent roof or a classic gable roof, allowing it to be flexibly adapted to different architectural requirements.
Juno shed Modern
The narrowvertically aligned louvres in the Modern motif lend the Juno shed a classic classic, filigree charm. Thanks to the invisible screws, rivets and door hinges create a particularly clear and harmonious look. The garden house is available with a flat roof, a pent roof or a gable roof, allowing it to be easily integrated into various garden styles.

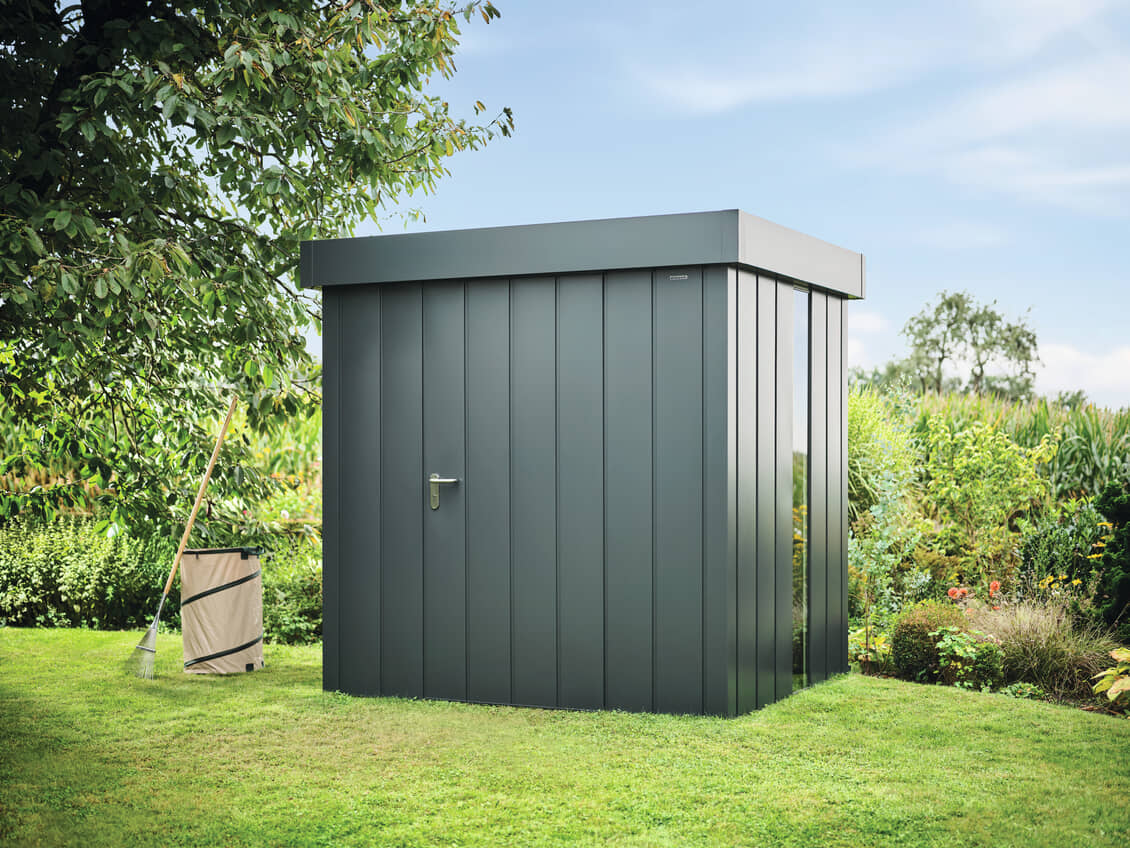

Juno shed with flat roof
A Juno tool shed with a flat roof creates a striking accent in your garden. The minimalist, modern design fits perfectly into any contemporary garden design. With a convenient clear passage height of almost 2 metres, it offers plenty of space for all your garden tools. The flat roof is available for both styles (Design and Modern) of the Juno tool sheds and comes in 11 sizes, ensuring you can find the perfect solution to suit your needs. Equipped with two drainpipes as standard, it ensures optimal drainage even in bad weather and allows rainwater to be collected for garden irrigation. Now you can get this functional and stylish highlight for your garden!

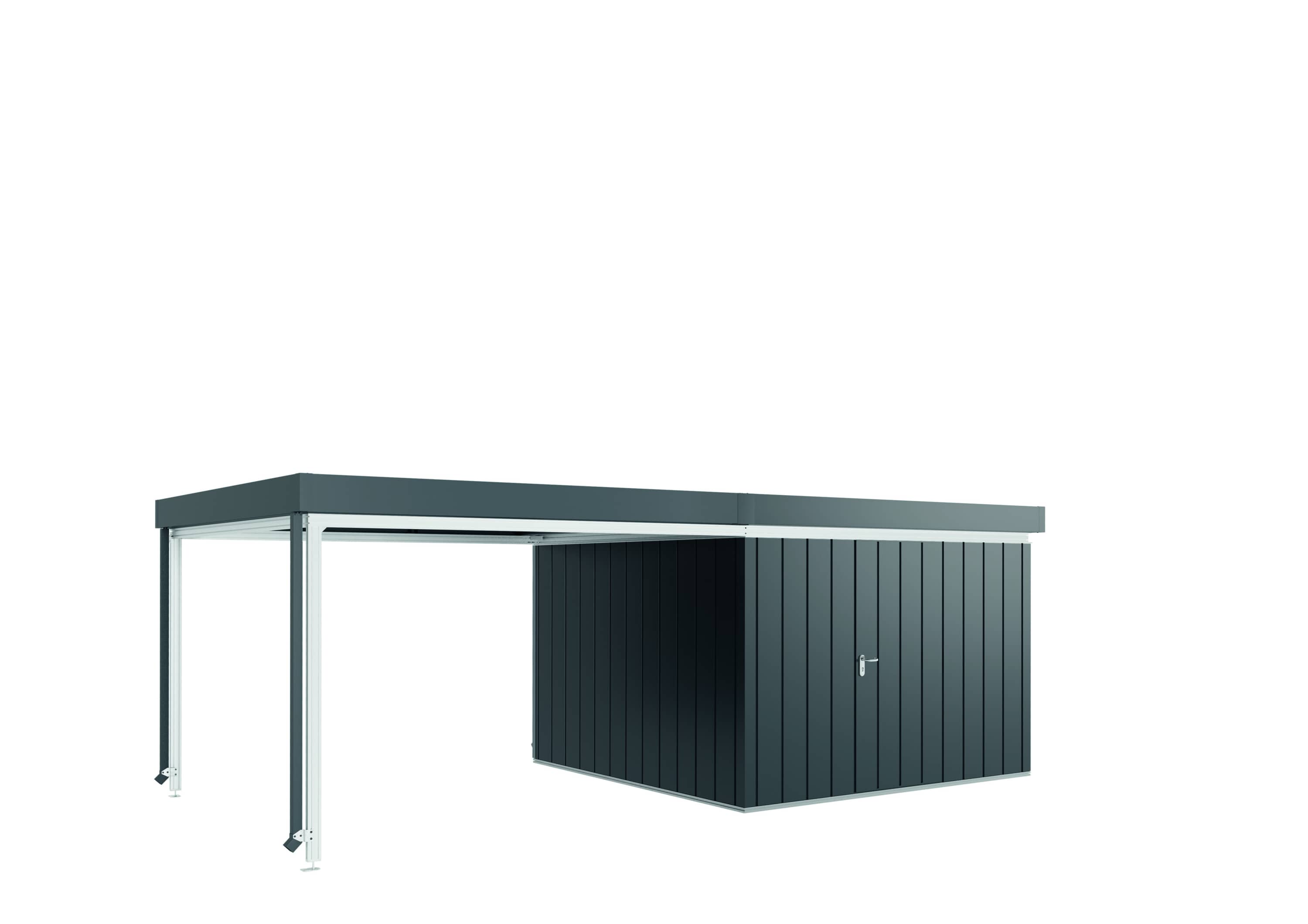

The Juno tool shed with a flat roof can also be equipped with an optional side lounge roof to create a semi-open, covered area. This provides an ideal sheltered outdoor retreat that can be used for garden parties, as a reading corner or for relaxation.
Juno shed Design style
Juno shed Modern style
Juno tool shed Design style with optional lounge roof and multi-function profile
Juno tool shed Modern style with optional lounge roof and multi-function profile

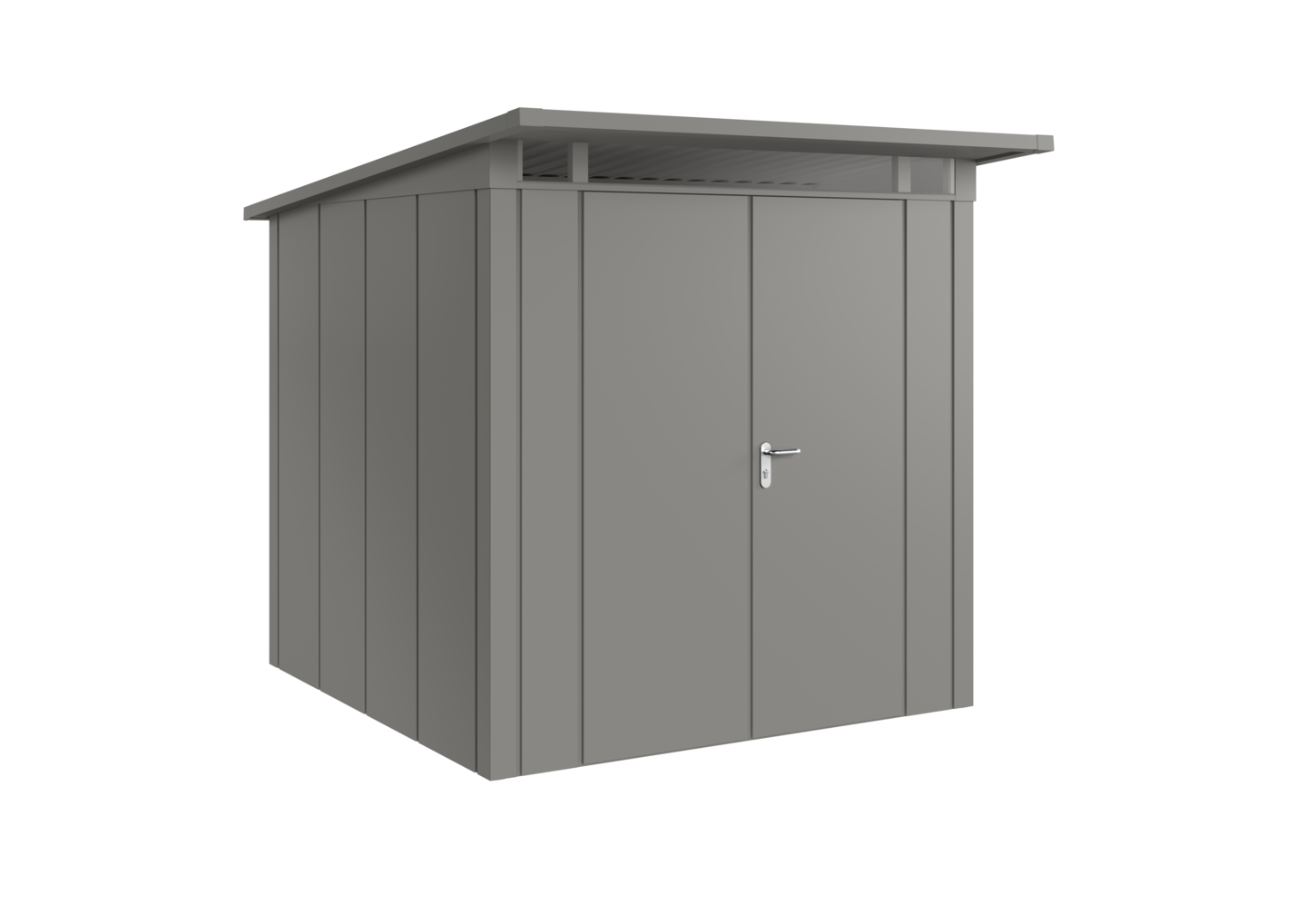

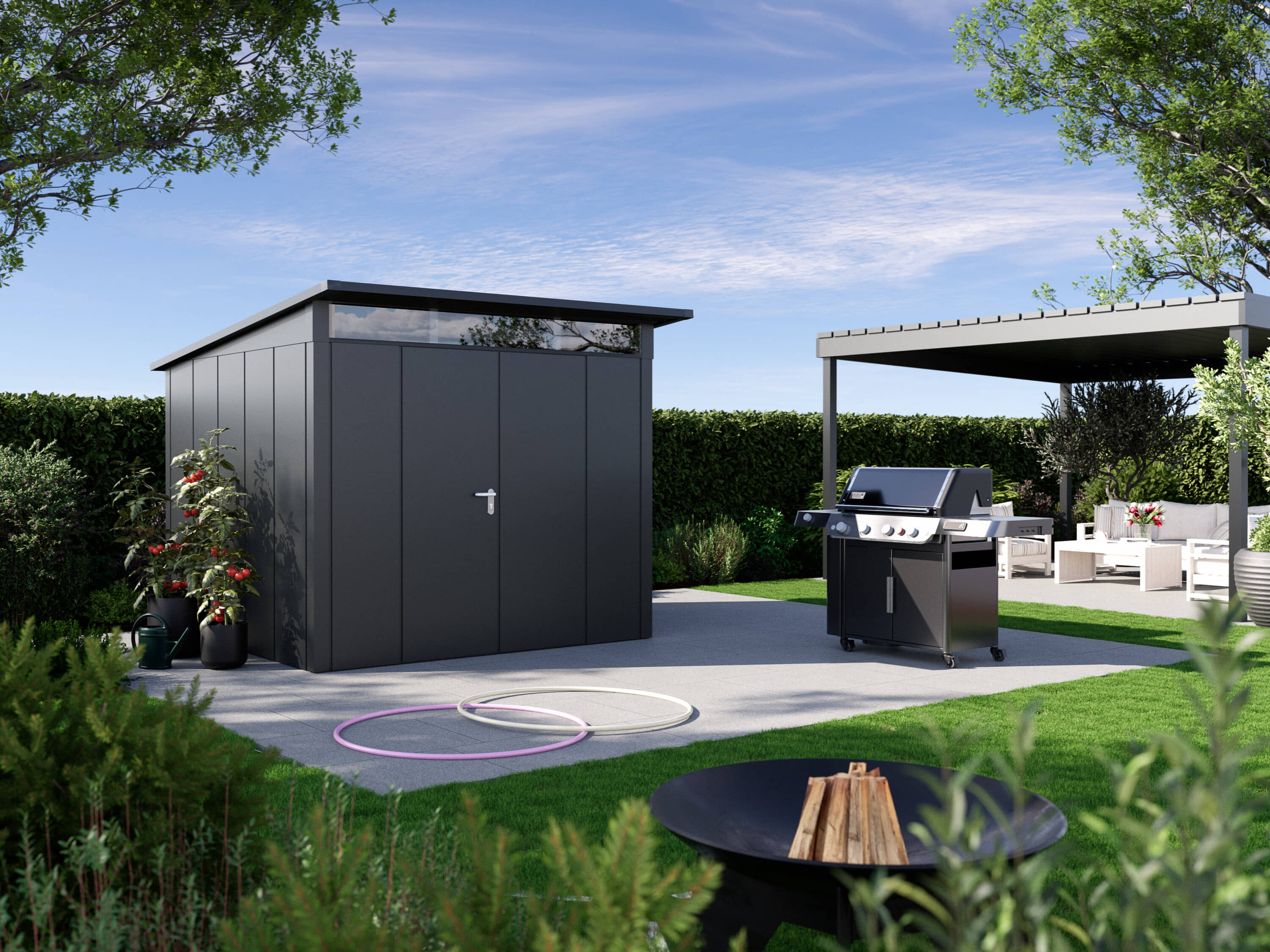

Juno tool shed with pent roof
A Juno tool shed with a pent roof is characterised by its modern look, which is accentuated by the backward-sloping roof surface area and stylish eaves. On the front, the transom light with scratch-resistant plastic glazing as standard provides natural light. The tool shed with a pent roof is almost 2 metres high inside, offering plenty of headroom. The flat roof is available for both Design and Modern styles of the Juno tool sheds and comes in 11 sizes, ensuring you can find the perfect solution to suit your needs.
Juno tool shed Design style
Juno tool shed Modern style
Juno tool shed with pitched roof
A Juno shed with a traditional pitched roof brings a classic style to your garden. Thanks to a generous passage height of almost 2 metres it offers you plenty of space for your garden tools. The saddle roof is available for both the Design and Modern motifs and in 14 different sizes so that you can find the perfect solution for your garden requirements. Decide in favour of timeless elegance and functionality!
Juno shed Design style
Juno shed Modern style
Matching accessories for every purpose
A tool shed tailored to your specifications
All Juno tool sheds can be used both indoors both indoors and outdoors easily and individually with practical accessories accessories. In this way, you can turn your shed into a unique item that is perfectly tailored to your requirements.
Downpipe set (2 pieces)
The rain downpipe (5.5 × 5.5 cm) including fastening material is optionally available in the matching RAL colour of the shed. For the shed with flat roofthe rainwater downpipe is part of the standard equipment.
Hose set (2 pieces)
With the optionally available hose set including fastening material, you can channel the rainwater directly into a rain barrel, for example.
Floor threshold ramp (inside/outside)
The threshold ramp makes it easy to push wheelbarrows, lawnmowers or bicycles in and out of the shed.
Glazings
Would you like more natural light in your tool shed? If desired, it can then be easily supplemented with glazing elements made of 4 mm thick safety glass (ESG) in the walls or doors.
Light strip
The continuous rooflight is a glazed section located between the roof and the side walls and allows natural daylight into the shed.
Full-length glazing
Floor-to-ceiling windows made of 4 mm thick laminated safety glass (LSG) allow plenty of daylight into your shed, create a bright and inviting atmosphere and improve the indoor climate.
Leaf cover
A leaf cover prevents leaves from entering the gutter and clogging it. This simple solution saves you time and effort, especially in leafy areas. The leaf cover is optionally available for sheds with flat and pitched roofs.

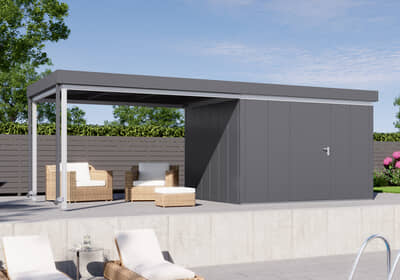

Side lounge roof
The lounge roof* for the Juno tool shed with a flat roof creates a semi-open, covered area. This provides an ideal sheltered outdoor retreat that can be used for garden parties, as a reading corner or for relaxation. It is available in six sizes (2 widths, 3 depths) and three colours (RAL 7016 Anthracite grey, RAL 9007 Grey aluminium, CH 703 Anthracite metallic) and can be individually adjusted. Retrofitting is also possible.
*The lounge roof can only be fitted in combination with the multi-functional profile and the aluminium bottom frame matching the Juno flat roof. Both accessory parts are sold separately and are not included in the scope of delivery of the lounge roof.

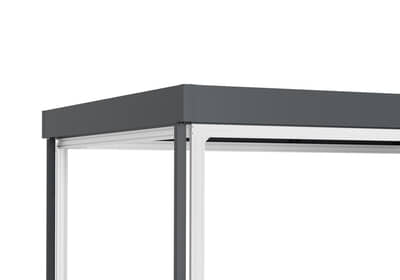

Multi-function profile
The high-quality multi-functional profile expands the Juno tool shed with a solid solution for easy fitting of accessories such as the lounge roof. It is compatible with all flat roof sizes, features a high load-bearing capacity and allows for additional elements such as benches or shelves. This creates additional space for exterior use, making it ideal for storage space, reading corners or garden lounges.
Aluminium floor frame
The optional aluminium base frame including fastening material ensures stability and protects against the effects of weather and rust.
Steel substructure for flooring
The steel substructure including fastening material for the floor ensures a stable base in the shed.
Screw foundation
With the screw foundation, you can erect your tool shed safely and in a stable position on uneven ground without having to worry about laying a costly concrete foundation.
Horizontal bicycle stand
The bike rack is available in different lengths. The distance of the bracket can also be flexibly adjusted to the tyre width. Bicycles weighing up to 40 kg can be stored in the holder.
Vertical bicycle stand
The rack has space for bikes up to 40 kg.
Coat hook
A coat hook offers a practical solution for hanging up jackets or other items neatly and within easy reach. Thanks to its simple assembly, it creates additional storage space and helps to keep the shed tidy. The coat hook is part of the standard equipment.
Shelf set
The shelf set consists of two shelves and shelf rails for practical attachment to interior walls. The set is part of the standard equipment.
Fold-up table set incl. shelf holder set
The fold-up table set consists of a fold-up table and shelf rails for practical fastening to the interior walls.
Device holder incl. shelf rail
Always in sight and quickly found: Tools can be kept tidy in the practical holder.
Shelf moulding (2 pieces)
A shelving strip enables smaller tools, plant accessories or other items to be stored neatly. It creates additional storage space and ensures that frequently used utensils are always to hand and well organised. The shelf rails are part of the standard equipment.
Aluminium floor profiles
Perfectly matched to the shed: The aluminium floor profiles are available as an option. to keep the floor free of rust and easy to clean.
Electrical panel
The electrical panel has several sockets that provide a versatile power supply for various devices such as garden lighting, e-bike chargers or lawn mowers. In addition, an integrated LED light ensures optimum illumination of the interior. On request, the panel can also be equipped with a power connection to operate more power-intensive machines and devices.
We think and act green
As a family business, we are very conscious of our responsibility to future generations and offer all products for residential construction CO2-neutral as standard. In this way, customers have the option to offset remaining emissions and make a contribution to climate protection when purchasing our products. With its sustainability strategy, Hörmann is aiming to reduce emissions or avoid them altogether. We cover 100% of our electrical power needs at all European production locations with green electricity from renewable sources. We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO2 each year. We work with ClimatePartner to offset the remaining emissions by supporting certified climate protection projects.
Long-lasting. Guaranteed
All major storage space system components are developed and manufactured by Hörmann. Endurance tests under real conditions ensure mature series products with Hörmann quality. For this reason, and thanks to uncompromising quality assurance, Hörmann offers a 20-year guarantee on all Juno sheds.
* The detailed warranty conditions can be found at: www.hoermann.ae
Material thickness up to 1.5 mm
The high stability of the storage space systems is achieved by a robust steel frame construction. Strong material thicknesses of up to 1.5 mm are used for optimum safety and long-lasting quality. All bolts and hinges are galvanized and thus protected against oxidation. The tool sheds are equipped with reliable door locks and high-quality hinges as standard. The standard profile cylinder in the locking system ensures that you can also store valuables, such as your e-bike, safely and securely.
Concealed hinges as standard
The standard concealed door hinges of the Juno sheds, which connect the door leaf and door frame and are not visible from the outside, ensure a harmonious appearance.
Foundation for a stable subsurface
To ensure complete stability and safe assembly of Hörmann tool sheds and firewood racks, a level substructure is mandatory. The storage space systems are fitted and anchored to a paved, asphalted or concreted base area, which should be at least as large as the tool shed. If the substructure is not level, this may lead to restrictions in terms of assembly, functionality and safety. Please note that only a stable foundation guarantees full functionality. We recommend a strip foundation of 25 × 80 cm to ensure that the tool shed can withstand wind loads of up to 150 km/h and snow loads of up to 150 kg/m2.
Standard mechanical hold-open device
The mechanical hold-open devices are included in the scope of delivery to allow controlled opening and closing. The door can be configured to open either left or right and has a double-skinned design.
Screw foundation for uneven floors
With the screw foundation, you can erect your tool shed safely and in a stable position on uneven ground without having to worry about laying a costly concrete foundation. It allows for repeated fitting and dismantling. The screw foundation is designed for a floor load of up to 150 kg/m2 and is available for all tool shed models with a flat, pent or gable roof. A screw-in aid is supplied as standard in the scope of delivery to facilitate fitting.
Laminated safety glazing as standard for full-length windows
The standard laminated safety glazing for full-length windows provides the tool shed with natural light and is highly resistant to breakage and splintering. It is also less susceptible to damage caused by adverse weather effects.
